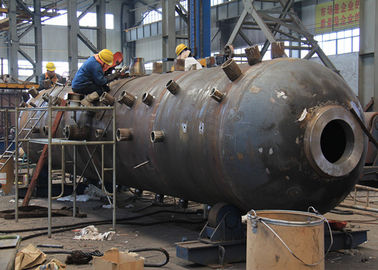

Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation

Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation

    • Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation
    • Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation
    • Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation
    • Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation
  • Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation

    รายละเอียดสินค้า:

    Place of Origin: China
    ชื่อแบรนด์: HD Boiler
    ได้รับการรับรอง: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Steam drum

    การชำระเงิน:

    Minimum Order Quantity: 1 set
    ราคา: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 50~100 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 400 Tons per month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Condition: New Type: Natural Circulation / Once Through
    Pressure: Low / Intermediate / High Pressure Output: Hot Water / Steam
    Dimension: Customization Usage: Industry/Power Station
    Thickness: 10mm - 100mm Origin: China

    Modern Marine thermal insulation hot water boiler drum TUV certification Metallurgical Industry



    Description



    The steam drum is the primary interface between water and steam. In a coal-fired plant, boiler feedwater passes through the economizer and into the drum where the steam separates from the feedwater and is drawn off to the superheater.Maintaining constant liquid level in the upper part of the steam drum is necessary to provide the proper quality of steam. Instrumentation must withstand high temperatures and pressures.





    Steam-water separation details



    Primary steam-water separation removes nearly all the steam from the water so that very little steam is recirculated from the drum bottom towards the heated tubes through the outlet connection (downcomer).

    At secondary separation, steam is passed through a secondary stage of separators or scrubber elements (usually closely spaced corrugated parallel plates) for final water droplet removal. Steam is then exhausted through various ports.



    Accessories



    The main components in a boiler system are the boiler feedwater heaters, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, steam system, condenser and the condensate pump. In addition there are sets of controls to monitor water and steam flow, fuel flow, airflow and chemical treatment additions.



    Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation





    Classification



    Pressure Low Middle High Superhigh
    Inner diameter(mm)

    800-1200

    1400-1600

    1600-1800

    1600-1800
    Thickness(mm) 16-25 32-46 60-100 80-100
    Material Carbon steel Carbon steel & Alloy steel Carbon steel & Alloy steel Alloy steel




    Certificate



    Coal Fired Steam Hot Water Boiler Drum In Thermal Power Plant Natural Circulation



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization



    Design and Manufacturing capacity



    1. Two automatic coiler production lines

    2. Hot bending to minimum bending radius 0.6D

    3. Membrane wall tube bending , with horizontal and vertical panel bending machines

    4. Panel fabrication for up to for 1000MW power plant boilers

    5. Fabrication of CFB Boiler Cyclone Separators

    6. Fabrication of Header to Chinese standards(GB), US standards (ASME), or EU standard (EN)

    7. Broad range of heat treatment equipment including 10 furnaces, offering normalizing and tempering
